Setting up a box
A box is a self-contained set of decks, hands, and tags (one region, one chapter, one cast). All of its setup lives on one page, so the navigator stays a tree of content.
The box page
Section titled “The box page”A box has six tabs, plus Map when the box uses the project map.
- Map comes first on a box that uses the project map, and the box opens on it unless you last chose another tab on a box’s page. It lists where this box’s hands stand on the map, and Open map goes to the map itself. A box that isn’t on the map has no Map tab, only a quiet line under its purpose: Use the project map when the project has one, Make a map when it hasn’t.
- Contents lists the box’s Decks and Hands, each with a count and a one-line description, then every card in the box, which you can sort into headings with Group by.
- Dealing is how the box deals. Rank by specificity decides whether a card that asks for more beats a card that asks for less. It’s on by default, and while it’s on, a card’s priority is the tie-break. Turns says what moves this box’s clock: each play, as everywhere else; the game, for a calendar your game ticks a day at a time; or every N seconds for a box the game’s clock advances by real time, in which case Redraw numbers on its cards are read as time. With either of the last two, plays advance nothing. Once the project is paired with Patter, Performed by Patter is here too.
- Card template declares what every card in this box carries. A card’s fields are its
game data, and there’s no other mechanism for attaching any. Each field has a name, a
type (Text, Text (multiline), Number, True / False, List, Flags or
Quality, which the files call
text,multiline,number,boolean,enum,flagsandquality, the same list Patter’s game data uses; Property types says which to use), a default, and the values of a List or Flags field or the stages of a Quality field. Older files spell textstring, which still reads, and Storyletter writestextthe next time it saves the box. Change a field’s name or type and you reshape every card in the box, so in a team this is usually lead-owned. The same tab declares the box’s Outcome fields below its card fields, which is what an outcome in this box may carry, shaped exactly the same way and filled in each outcome’s own editor. The tab’s count is both lists together. Under them, Dealing is what a card in this box deals with until it sets its own: Redraw, Weight, In one hand and Across hands. A new card starts on these, and a card that hasn’t set its own goes on following them, so changing one here changes every such card. - Hand templates lists the kinds of hand the box declares, each row showing its bindings, its slot count and how many hands use it. Click one to open it.
- Tags lists the tag groups, each row showing its name and its tags as colour chips. Click one to open it. A group can declare properties every one of its tags carries. In a box on the map, the map’s zone group is listed here too, marked map.
- Properties declares the box’s own
@boxstate.
Hand templates
Section titled “Hand templates”A hand template is a kind of hand. Give it a title in your own words, such as “Places in the village” or “People you can talk to”, and that title is shown under the name of every hand made from it, and offered when you add a hand on the map. Its document has three tabs.
- Dealing holds the shared When condition and the default Slots. The condition is written once and checked for each hand against that hand’s own tags, so one condition covers every hand it governs.
- Bindings sets each tag group to one fixed tag for every hand of this kind, leaves it for each hand to choose, or ignores it.
- Properties declares the
@handstate every hand made from this template carries.
Edit a template’s condition and every hand that uses it follows straight away. A hand can override only its slot count. Everything else comes from the template.
Your game never names a hand template. Only hands can be dealt.
A hand is what your game deals: deal("tavern-encounters"). The box’s Hands page
lists them, each row showing which template it uses (or that it has its own rule) and its
slots.
A hand’s document has four tabs, and opens on Cards.
- Cards is what can come up at this hand (below).
- Dealing starts with a Template picker, where you choose a template or “(standalone, its own rule)”. Pick a template and you get one Chosen tags row per group the template leaves open, each a picker of that group’s declared tags. In a box on the map, that’s where the hand’s zone is chosen. Choose its own rule instead and you get the bindings and the condition inline. Where the project declares a property that can name a tag, the picker also offers it under from a property, and the hand then moves to wherever that property says.
- Slots is how many cards the hand holds. A hand with its own rule switches between
unboundedand a bounded count. A hand made from a template chooses between as template (the template’s value applies),unbounded, and a bounded count of its own. - Properties is the hand’s own
@handstate. A hand made from a template inherits the template’s properties, and the tab tells you to edit them on the template so every hand follows.
You create each hand yourself. They aren’t generated from the tags. Not every npc value
is someone you can talk to, so you declare the ones that are. In a box on the map, + Hand
on the map makes one and stands it where you click.
What can come up at a hand
Section titled “What can come up at a hand”
The Cards tab lists every card in the box that could be dealt to this hand, by its tags
alone. Each row is the card’s title, its deck, and its condition as an if line,
plus also at for a card that names other hands too. Clicking a row opens the card. The lists are:
- Only here: the cards that name this hand, so they come up here and nowhere else.
- Placed here but can never come up here, shown only when there are any: cards that name this hand but have a tag that rules it out, each with the reason. This is where that mistake gets caught.
- Anywhere in a zone, such as Anywhere in village: the cards filed to the zone this hand is in, which can come up here and at every other hand in that zone.
- Wherever a group is a tag, such as Wherever npc is gareth: for any other group the hand binds, the cards tagged with its tag, which also come up at any other hand bound the same way.
- A count of the cards that can come up anywhere, those that name no hand and have no tag in any group this hand binds. Show lists them. In a big box that’s most of the box, so it starts folded.
A card gated on a group the game sets from its state, such as the current act, carries a badge like when act: act-2, because that decides when it comes up, not where.
+ New card here asks which deck, then makes a card that names this hand and opens it. The lists ignore conditions, so they say what could be dealt here, whatever the state is right now. To see what is dealt, use the Board.
A hand whose zone comes from a property moves about, and its tab has a tier for every zone it can be in.
Tag groups
Section titled “Tag groups”

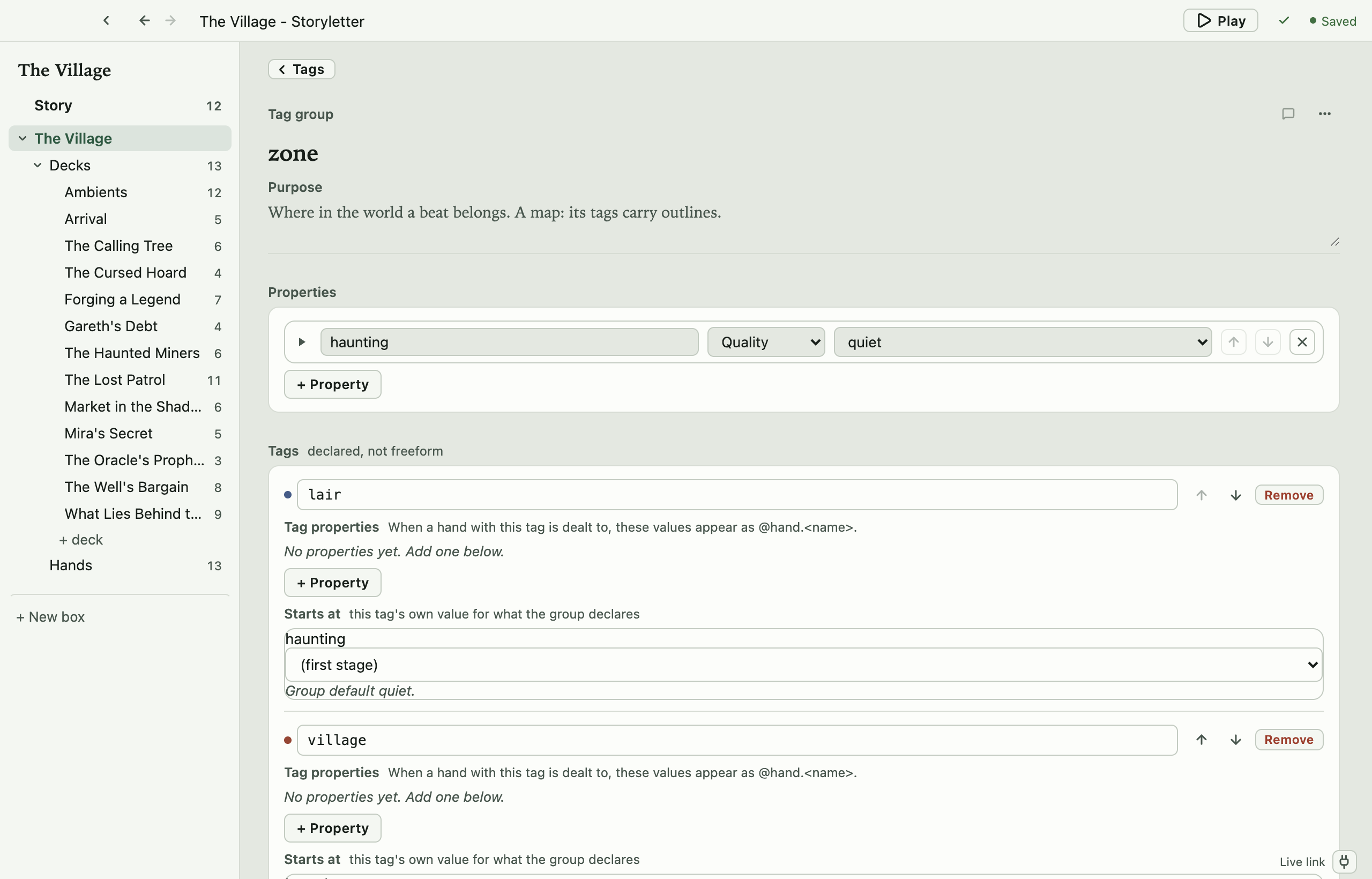

A tag group’s document is a single page, with the group’s Properties at the top, then its tags. Tags are declared, not free-form, so a card can only carry a tag the box knows about.
Properties on the group are the ones every tag has. “Every zone has a haunting level” is one declaration here, and each tag below gets a Starts at row where you set only that zone’s own value. That’s usually what you want. Declare once, and a zone you add next month arrives with the property already on it.
Whenever a hand is bound to a tag, that tag’s properties are part of @hand, so a card
reads @hand.haunting and never has to know which zone it’s in. Writing it back is the
same. An outcome’s @hand.haunting lands on whichever zone the hand is in, and leaves
every other zone alone. A quality works here too, so each zone can be at its own stage of
the same ladder.
Tag properties, on a single tag, are still there for a group whose tags genuinely differ. If you find yourself adding the same property to every tag by hand, that’s the group form asking to be used instead.
The project map’s zones are a tag group like any other, with one page for the whole project. Its properties are one value for every box that uses the zone, and each row says whether players share it. See Zone properties.
Starting a box from a box kit
Section titled “Starting a box from a box kit”+ New box opens the box kit picker. A box kit is a starting point you own, fully editable the moment it lands, with no reference to the kit left behind in your files.
There are two scales, and each says which it is. A box kit scaffolds one box, and a game kit scaffolds a whole project (Storyletter’s New Project picker offers those).
| Kit | What you get, and what it teaches |
|---|---|
| Blank | An empty box, for when you already know the shape you want. Add your own decks, tags, hand templates, and hands. |
Encounters on a map (rpg in the CLI) |
Things that can happen in each part of the map: the tavern and the market as zones you can redraw, a “Places things happen” template with one hand already on the board, and an encounter whose outcome raises the box’s tension. Teaches boxes, tags, the map, and what playing a card does. |
Conversation topics (dialogue in the CLI) |
What each character can bring up: one hand of topics per NPC, including a shared rumour with a single copy, so whoever offers it first gets it. Teaches hands, copies, and how one card can be held by only one hand at a time. |
Job board (jobs) |
Work on offer at boards around town: two boards standing on the map, a delivery job whose handoff only turns up once it is taken, and heat that a job going loud raises and lying low brings down. |
Stash (stash) |
What exploring turns up: two hiding places, finds with a value field for your game’s economy, and one find that only turns up once another points the way. |
Codex (codex) |
Entries the game reads but never plays, unlocking as the player learns things. Two leads stand in for the rest of your game; point the conditions at your own state once it writes some. |
News (news) |
Screens around town: background chatter, and stories that lead once something happens. Two happenings stand in for the rest of your game, as in the Codex kit. |
Story acts (acts) |
A story in three acts: an ordered act the box keeps, beats that wait for their act, one beat in each act that moves the story on, and a finale. |
Job board, Stash, Codex and News are cut from the Port Meridian example, each made to stand on its own. The kits that use a map put the box on the project map. In a project with no map yet, the kit’s zones become the project map. In a project that has one, the box joins it and its cards and hands start untagged, ready for you to file to your own zones. Every narrated kit carries a purpose note on every piece, including the outcomes, explaining what it’s for.
Where a box kit has no use for a concept, it doesn’t declare it.
For barks, use Patter, which is built for lines of performed dialogue.
storyletengine new box --kit <name> scaffolds the same box from the
command line.
